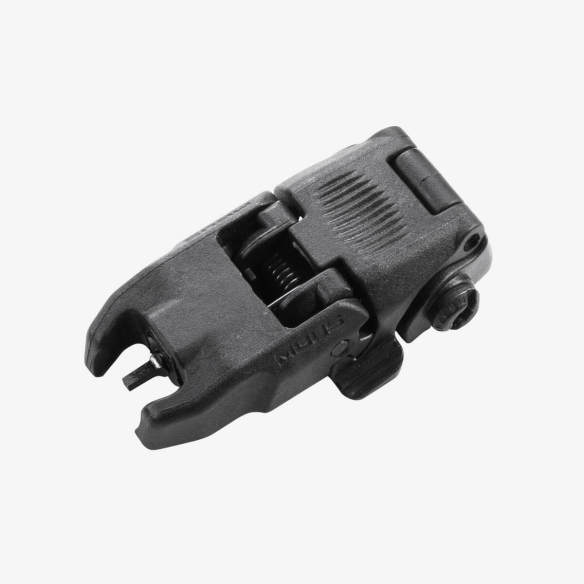

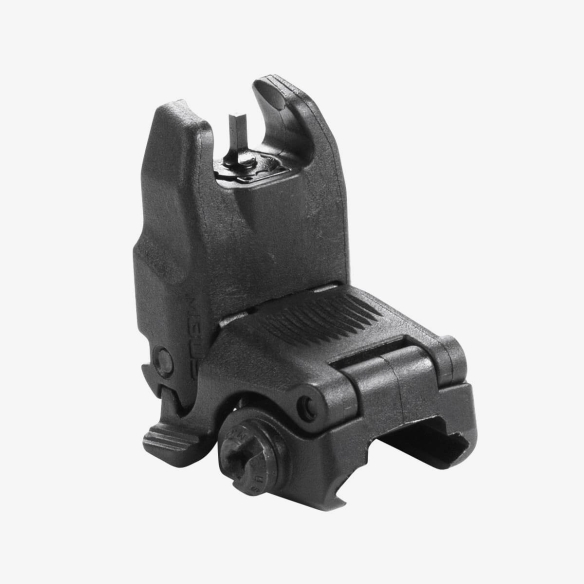

MAGPUL MBUS Back-Up Sight – FRONT – MAG247 The MBUS (Magpul Back-Up Sight) is a low-cost, color injection-molded, folding back-up sight. The MBUS Front Sight is adjustable for elevation and fits most 1913 Picatinny-railed hand guards, but is specifically tailored to the AR15 / M16 platform. An elevation adjustment tool is included, but most aftermarket A2 front sight adjustment tools may be used as well. SPRING-LOADED FLIP UP SIGHT Easily activated from either side or by pressing the top. Protective wings shield the spring-locking A2 front sight post. IMPACT-RESISTANT POLYMER CONSTRUCTION Polymer construction provides light weight and resists operational abuse DETENT AND SPRING PRESSURE KEEPS SIGHT ERECT Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc. CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS Compatible with most MIL-STD-1913 Picatinny / STANAG 4694-railed hand guards* and provides the same height-over-bore as standard A2 irons Made in the USA. TECHNICAL SPECIFICATIONS More Information Position Front Height above rail, stowed ~0.51 in. Length, deployed 1.5 in. Length, stowed 2.6 in. Weight, w/ hardware 1.2 oz. Other Specs ELEVATION ADJUSTMENT ~1.6 MOA (1.886″/100m) per click with a 14.5″ sight radius ~1.2 MOA (1.367″/100m) per click with a 20″ sight radius *NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed fore end on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.
